Rated power Continuous KW/KVA   180/225
Standby KW/KVA                                   200/250
Generator 100% load Fuel consumption (g/kw.h)      197
Oil consumption (g/kw.h)            0.8
Noise dB (A) LP7m                     93

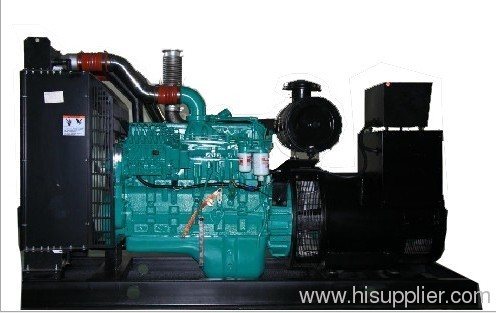

Diesel engine Model                  6LTAA8.9-G2
Number of cylinder                         6
Structure characteristics              Direct injection,inline,water-cooled,turbocharged,inter- cooled,Electricity adjustable
Output volume (L)                         8.9
Bore *stroke(mm)                       114*145
Compression ratio                         18.0:1
Ventilation capacity (m3/min)                400
Gas capacity(m3/min) 20
Smoke exhaust capacity(m3/min)               55
Exhaust temperature ( o C)                      470
Oil capacity (L)                                               27.6
Cooling water capacity (L)                       50
Insulation Class                                    H,
Protection Grade                               IP21-IP23
Shape dimension(L)                    2800
Shape dimension(W)               1000
Shape dimension(H)              1600
Net weight(kg)                          2000
